Welcome to Waicomm, SNG satellite solutions

WaiComm is a satellite solutions company active in New Zealand, Australia and the Pacific Islands with global capability for major events. We provide SD/HD satellite uplinking through the use of SNG vehicles and flyaways in the Ku and C Bands.

Mobile uplinking
Major event delivery
VSAT maintenance
Design & Build

Mobile Satellite Uplinking

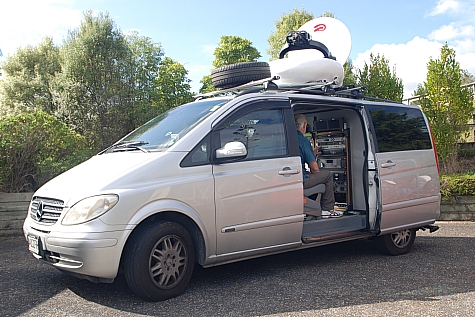

SNG Van

Fully redundant Ku-band mobile uplink for fast deployment. Motorised roof-mounted antenna with MPEG-4 SD/HD, DVB-S2 capability. Dual 400W amplifiers. On-board 5.6kVA generator with two 3kVA UPS's.

Mercedes Viano LWB
2x rear stabilizers
Seating for two persons
1x GigaSat 1.1M Motorised Antenna, roof-mounted
2x Xicom 450 Watt Ku-Band Amplifiers
1x Xicom Controller
Fujitsu SD/HD MPEG-4 encoders
2x Comtech DVB-S2 modulators
2x Comtech Ku-Band upconverters
Sencore SD/HD MPEG-2/4 receiver
Tanberg RX1290 MPEG-2/4 receiver
12x12 SD/HD SDI router
Wohler audio monitor
Avcom spectrum analyser
Oman 5.6kVA generator
2x 3kVA UPS's

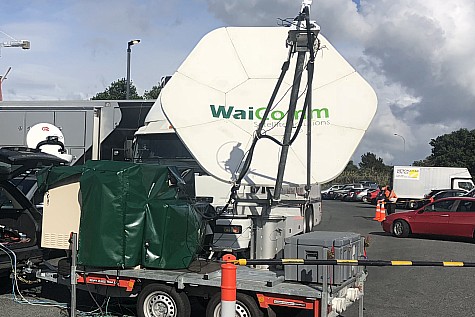

SNG Mobile Trailer

Fully redundant Ku-band mobile trailer with a 2.4m Ku-band antenna with dual 750 Watt amplifiers. MPEG-4 SD/HD, DVB-S2 capable.

2.4M Vertex antenna (motorised pol)
2x Ku-band 750 Watt Xicom HPA’s
1x Xicom Controller
2x Ku-band Works Satellite upconverters
2x Newtec modulators capable of 8PSK & DVB-S2
2x Fujitsu MPEG4 IP-9500e SD/HD Encoders
1x Tandberg 1290 MPEG2/4 receiver
16x32 Blackmagic HD/SD Router
Audio Monitor unit
HP Spectrum Analyser

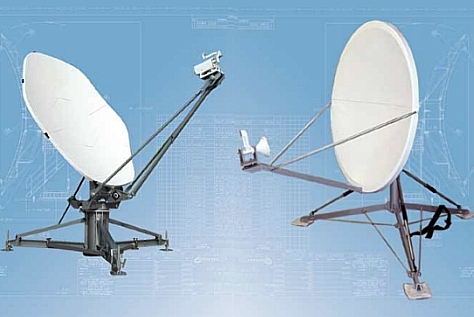

C & Ku-band Flyaways

2.4m Vertex C-band and 1.2m Ku-band flyaways. Typically used for major long event deployments. Example: for international delivery from New Zealand, Australia and the Pacific Islands.

Vertex 2.4M SF C/Ku-band antenna
C-band Linear & circular feeds
Antenna stores in 9x boxes
2x Xicom weatherised C-Band 400 Watt Amplifiers
1x Xicom Controller
2x Radyne C-Band upconverters
Vertex 1.2M Ku-band antenna
AVcom spectrum analyser
Video and Audio Monitoring box

About Us

WaiComm is a satellite solutions company active in New Zealand, Australia and the Pacific Islands with global capability for major events.

WaiComm staff has over 20 years experience in the installation of satellite equipment, network design, maintenance, and project management.

Managing Director: Dave Clarke.
Qualifications: RTC and RTC Supplementary, NZ Certificate of Engineering (Telecommunications), Diploma in Engineering Business Location: Auckland, New Zealand.
